DRAWINGS & DATA

Program

Guest Arrival

  • Reception - 800 SF

  • Main Hall / Library - 800 SF

  • Circulation & Services - 1500 SF

Food and Beverage

  • Café & Lounge (60 seats) - 1,600 SF

  • The Terrace (exterior deck) - 1,200 SF

  • Restaurant (independent 100 seats) - 4,260 SF

Conference

  • Meeting Room A (L1) - 365 SF

  • Meeting Room B (L1) - 780 SF

  • Meeting Room Foyer (L1) - 225 SF

  • Meeting Room C (L2) - 600 SF

  • Meeting Room D (L2) - 600 SF

  • Hospitality Suite (L2) - 500 SF Total: 3,070 SF

Guest Accommodations

  • King Bedrooms - 30

  • Deluxe King Bedrooms - 40

  • Whirlpool King Bedrooms - 8

  • Accessible King Bedrooms - 3

  • Double / Queen Bedrooms - 34

  • Accessible Double / Queen Bedrooms - 4

  • Suites - 5 Total: 124

Recreation

  • The Gym - 800 SF

  • The Decks Patio / green roof - 2,050 SF

Project size: 84,295 SF

Location: 41 Cherry St. Burlington, VT 05401

Client: Hotel Vermont. The property is locally developed, owned and operated.

Completion date: April, 2013

Total construction cost:  14.4 Million

Environmental features: The project is seeking LEED Certification by the US Green Building Council.

Exterior materials: Brick: Belden Mayo Blend; Wood veneer panel: Prodema; Stone: Middlebury Blend; Curtainwall and Storefronts: Kawneer; Windows: Pella

Interior Materials:  White Oak Wall Cladding; Stone: Granite, Slate, Middlebury Blend; Blackened Steel Decorative Metal; Guestroom Interior Doors by Raydoor

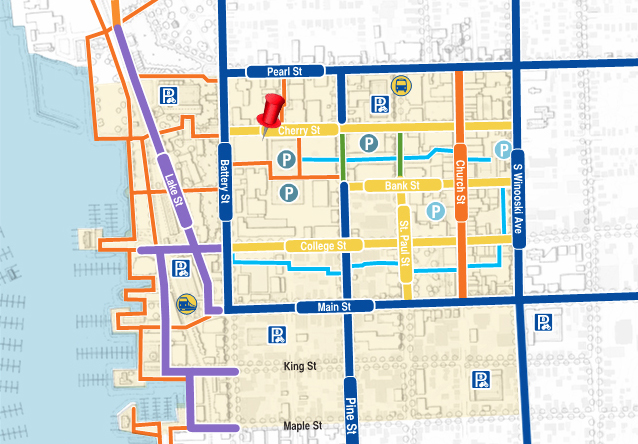

LOCATION

SITE VIEW

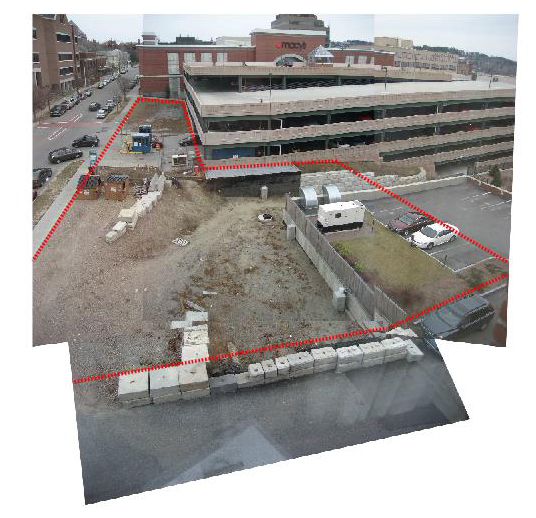

The site - before.

The site - before.

The Hotel Vermont design team turned a difficult site into a series of creative opportunities.  The building wraps around one parking garage, bears upon a second lower garage, and spans across two different garage access points.  The majority of the building fits into a narrow 45 foot wide slot in front of the City-owned parking garage. The site gains additional depth at the west end where the lobby and other public functions are located.

SITE PLAN

Site plan.jpg

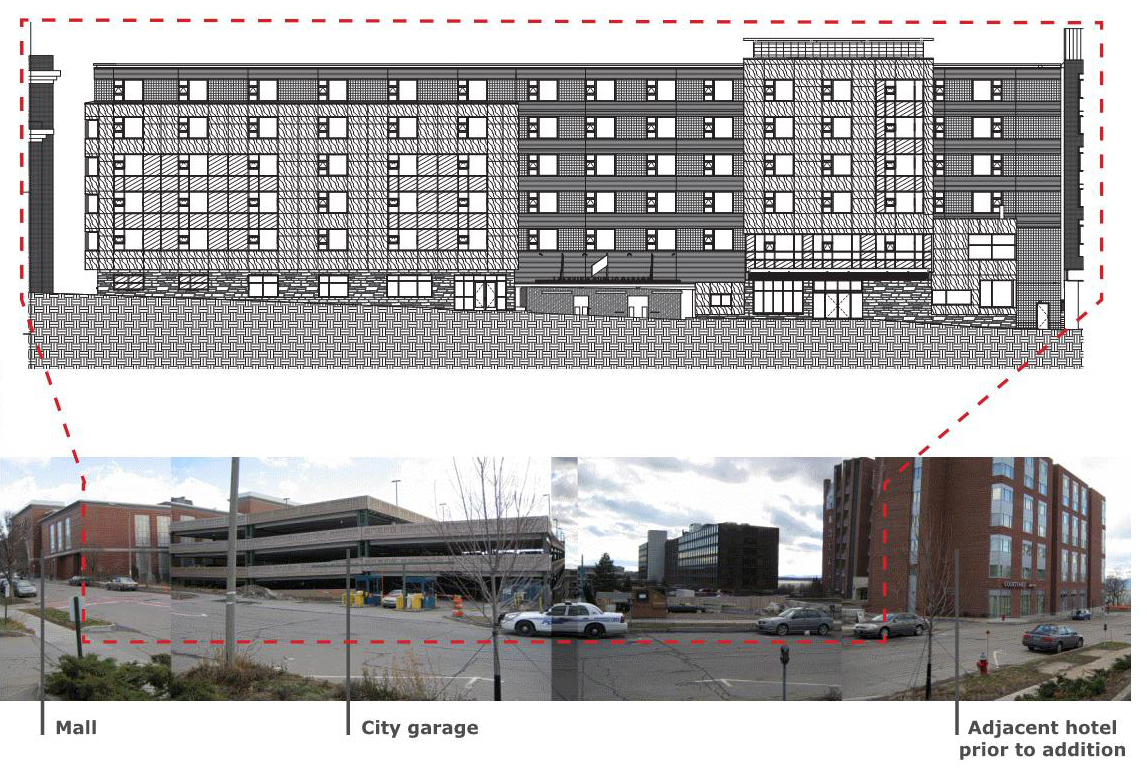

NORTH FAÇADE

LEVEL 1 - GROUND FLOOR

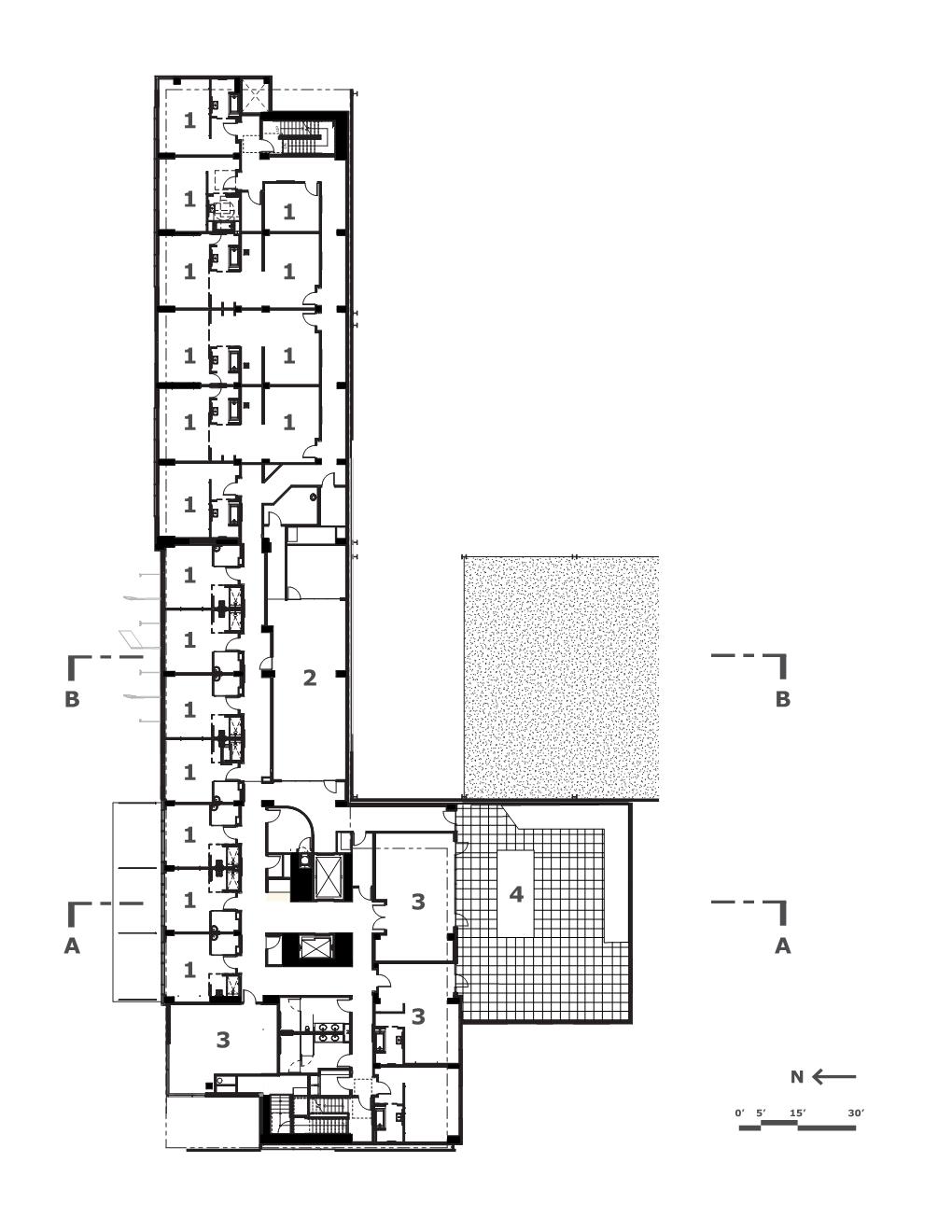

LEVEL 2

  1. Restaurant (Leased space)

  2. Garage entrance

  3. Short term guest parking

  4. Lobby / Reception

  5. Library

  6. Bar / Lounge / Restaurant

  7. Kitchen

  8. Boardroom / Lounge

  9. Conference room

  10. Terrace

  11. Trash / Recycling building

  12. Hotel offices

  1. Guestrooms

  2. Gym

  3. Meeting place

  4. Terrace / Vegetated green roof

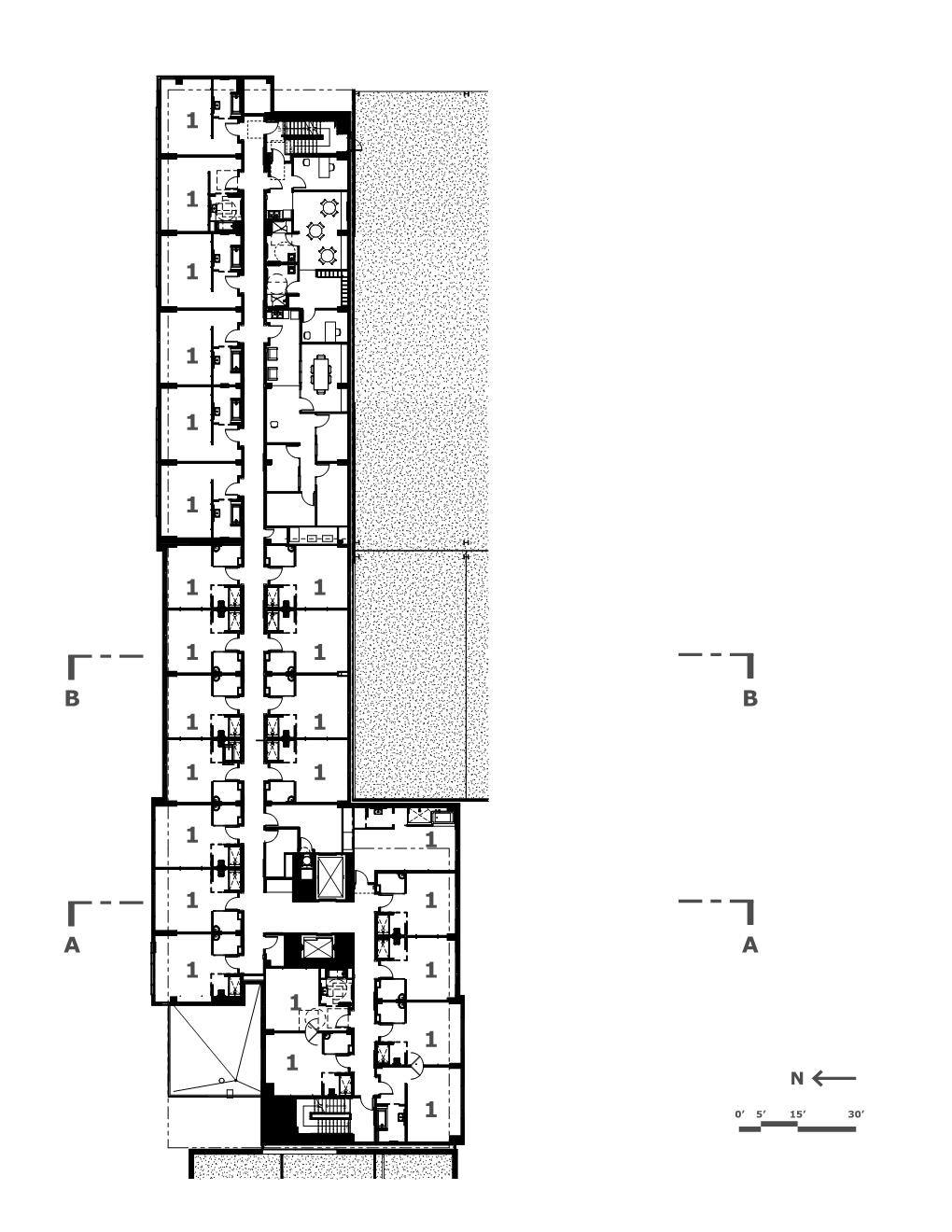

TYPICAL UPPER LEVEL

  1. Guestrooms

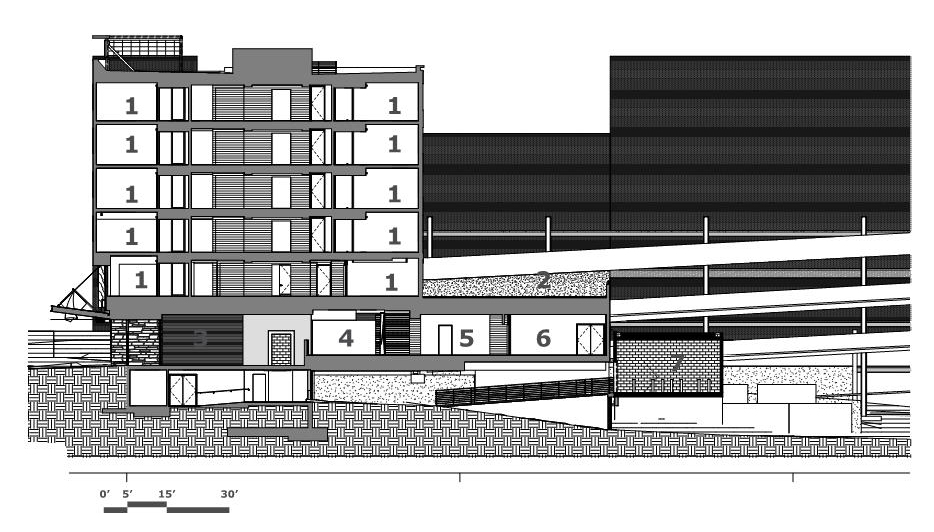

SECTION A

  1. Guestrooms

  2. Terrace / Vegetated Green Roof

  3. Lobby / Reception

  4. Bar / Lounge

  5. Board / Lounge

  6. Conference room

  7. Trash / Recycling building

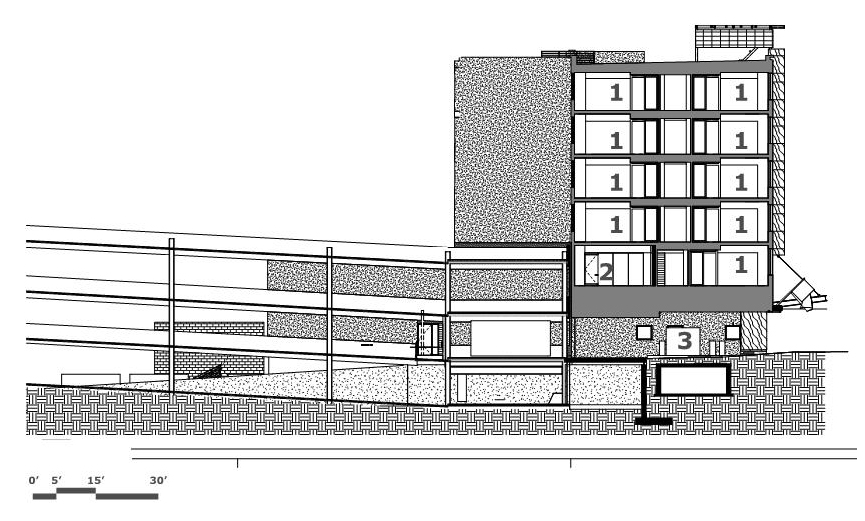

SECTION B

  1. Guestrooms

  2. Gym

  3. Garage Entrance

TIME LAPSE CONSTRUCTION
